On-Premises Site 2 Site VPN with Azure using Tomato Shibby Mod (Entware-ng and Strongswan setup) – part 2

This article is part of a series of 4 where I am talking about how to setup site-2-site VPN between on-premises and Azure using Tomato Shibby Mod, Entware-ng and Strongswan. For a better understanding please make sure you read also the other parts:

  1. Install and configure Entware-ng + strongSwan on your router.
  2. Configure and perform the site-2-site VPN using Azure dynamic gateway.
  3. Configure and perform the site-2-site VPN using Azure static gateway.
  4. Troubleshooting Azure site-2-site VPN and strongSwan.



Configure and perform the site-2-site VPN using Azure dynamic gateway

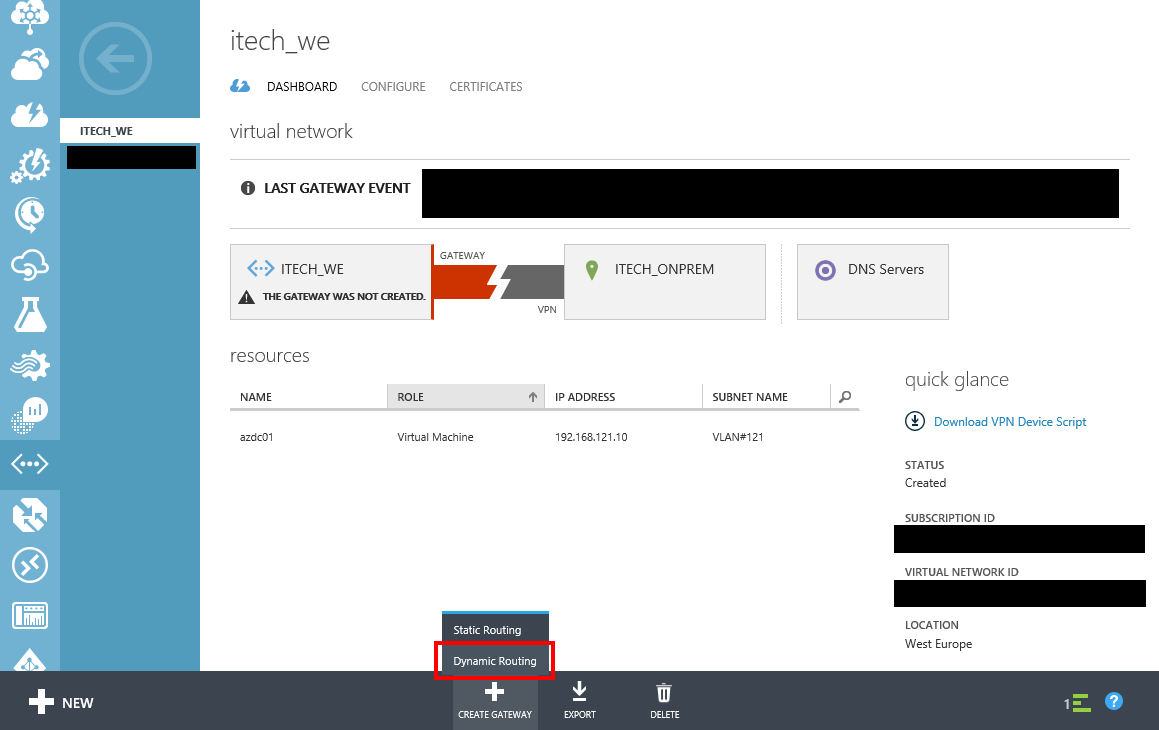

In the Azure Portal, carefully select Dynamic Routing when the VPN gateway creation is initiated.

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_17

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_18





In this example:

  • 188.194.135.45 represents the on-premises gateway IP address (the router configured with Entware-ng + strongSwan)
  • 192.168.2.0/24 represents the on-premises network subnet
  • 40.118.98.33 represents the Azure VPN gateway IP address
  • 192.168.64.0/18 represents the Azure network subnet
  • “eU3V1TugtEQOMSqQYemNtH7yRb8c6mta” represents the pre-shared key





Connect to your router and make the following adjustments to your ipsec.conf and ipsec.secrets files.

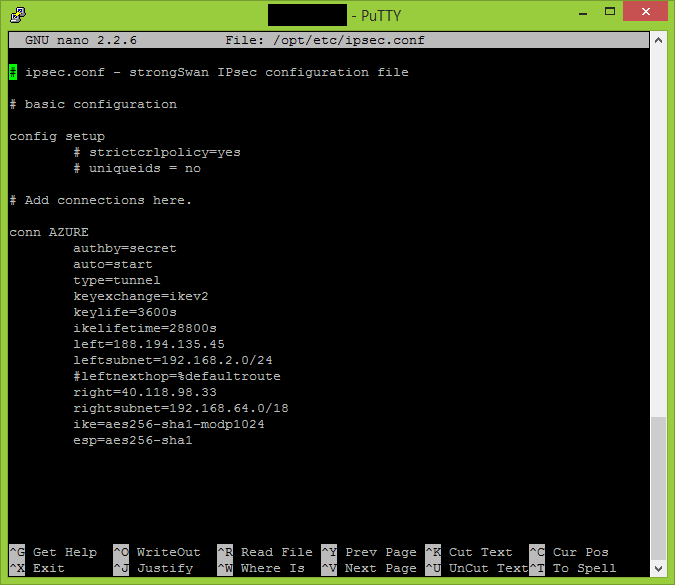

nano /opt/etc/ipsec.conf

# ipsec.conf - strongSwan IPsec configuration file

# basic configuration

config setup
        # strictcrlpolicy=yes
        # uniqueids = no

# Add connections here.

conn AZURE
        authby=secret
        auto=start
        type=tunnel
        keyexchange=ikev2
        keylife=3600s
        ikelifetime=28800s
        left=188.194.135.45 #IP address of your on-premises gateway
        leftsubnet=192.168.2.0/24 #network subnet located on-premises
        #leftnexthop=%defaultroute
        right=40.118.98.33 #Azure VPN gateway IP address
        rightsubnet=192.168.64.0/18 #Azure network subnet defined in cloud
        ike=aes256-sha1-modp1024
        esp=aes256-sha1

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_19

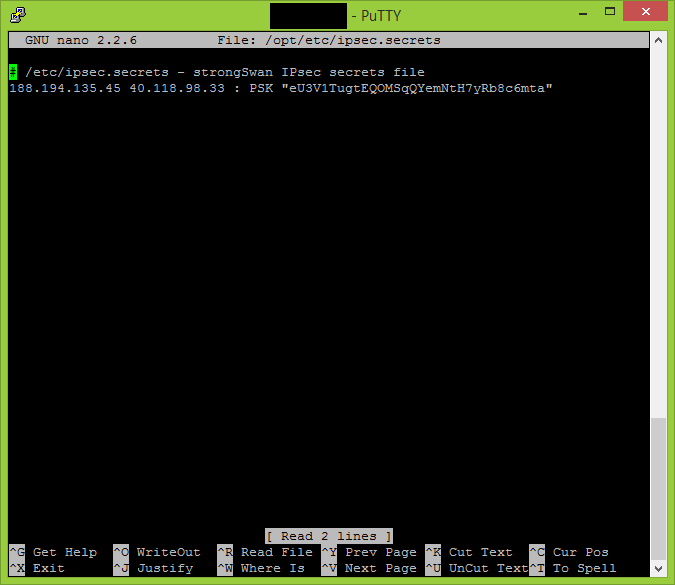

nano /opt/etc/ipsec.secrets

# /etc/ipsec.secrets - strongSwan IPsec secrets file
188.194.135.45 40.118.98.33 : PSK "eU3V1TugtEQOMSqQYemNtH7yRb8c6mta"

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_20

Please note any additional empty new line or invalid characters added to these two configuration files can lead to unsuccessful VPN site-2-site.

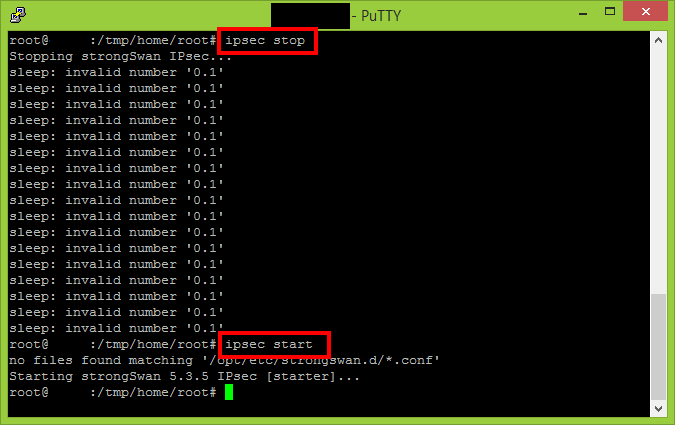

Execute the following two commands to ensure the new settings are propagated.

ipsec stop
ipsec start

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_21





Use the “status” parameter to see if the VPN connection has been established.

ipsec status

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_22

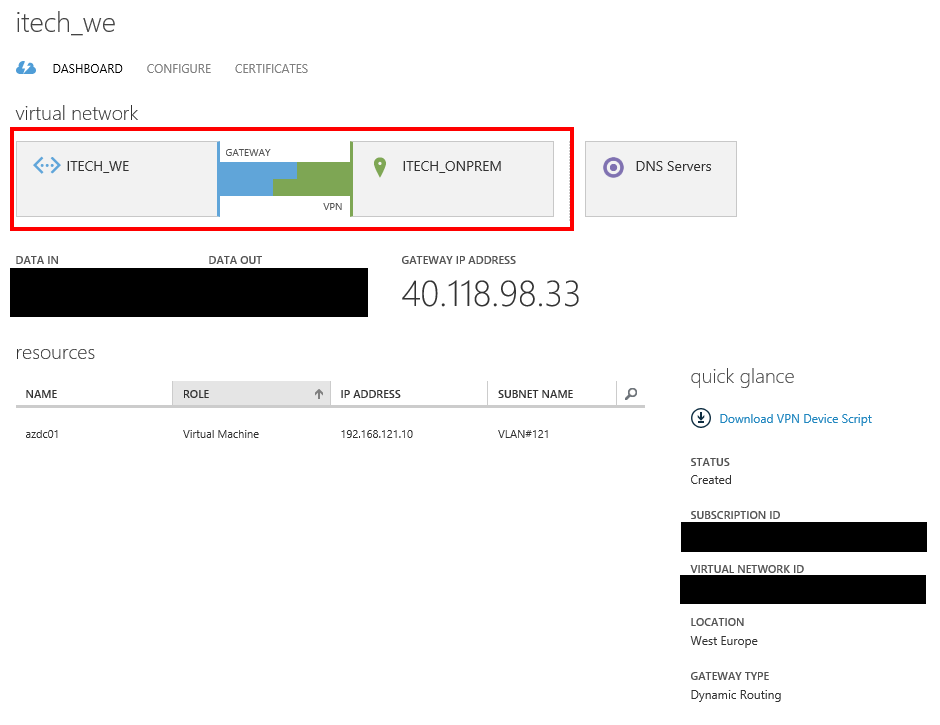

After couple of minutes the connected status will be reflected also in the Azure Portal.

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_23





By default your router will allow all outbound traffic with your defined Azure networks, but will block all the traffic initiated to your on-premises subnet. That’s why is necessary to open additional traffic between the two internal networks (on-premises and Azure).

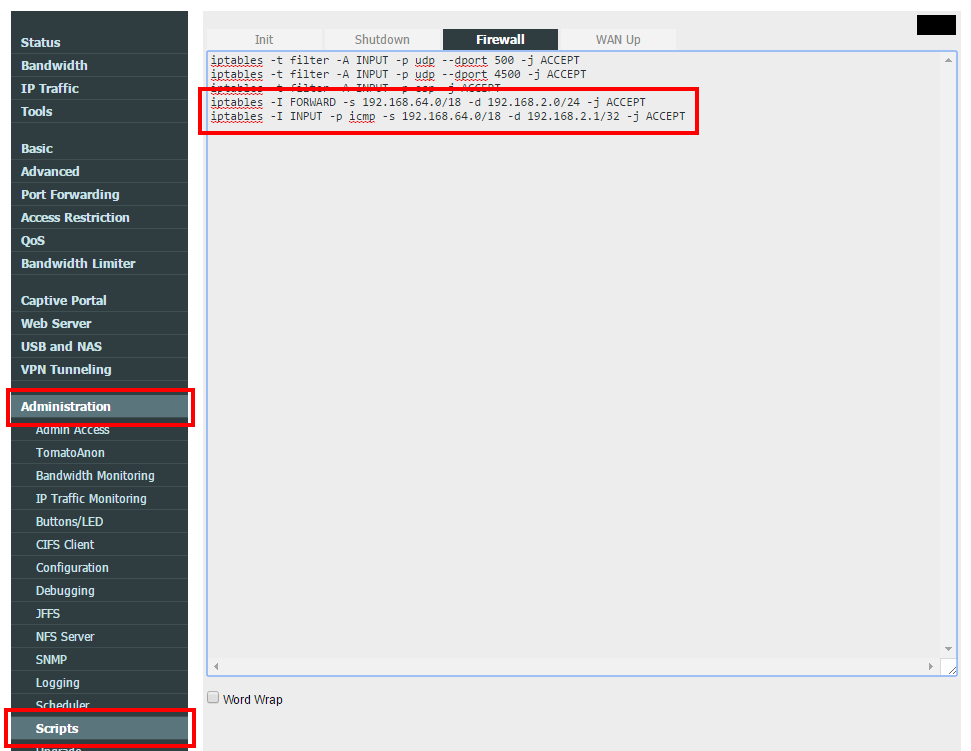

Append the following commands in the Firewall script section. Please keep in mind is necessary to call/execute these commands also in the SSH session in case is necessary to make the changes immediately.

iptables -I FORWARD -s 192.168.64.0/18 -d 192.168.2.0/24 -j ACCEPT
iptables -I INPUT -p icmp -s 192.168.64.0/18 -d 192.168.2.1/32 -j ACCEPT

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_24





Let’s test the site-2-site connectivity.

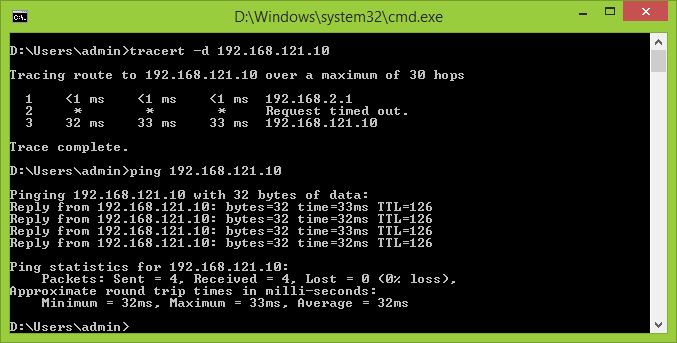

From on-premises to Azure.

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_25

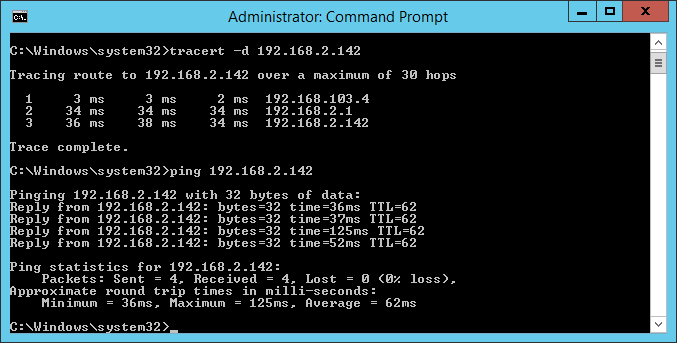

From Azure to on-premises.

On-Premises_Site_2_Site_VPN_with_Azure_using_Tomato_Shibby_Mod_Entware-ng_and_Strongswan_26





Continue with On-Premises Site 2 Site VPN with Azure using Tomato Shibby Mod (Entware-ng and Strongswan setup) – part 3.
