Software bug in OneDrive for Business 1.2.2 (iOS)

Update 1 (September 10, 2014): Microsoft support confirmed this software bug and they escalated the problem to the US technical team. If somebody else is in the same situation please mention [REG:114080811687450] as reference. The incident was opened on 8th of August 2014 and still no solution provided.
Please also check the Office 365 forum thread I opened for this issue – http://community.office365.com/en-us/f/153/t/257777.aspx.



Update 2 (November 10, 2014): Microsoft released version 1.2.4 of OneDrive for Business (formerly SkyDrive Pro). The authentication issue caused by the space characters persists!



Update 3 (December 05, 2014): Microsoft Support [REG:114080811687450]  sent me the following response.
“Hello,
The official answer that we have from the Product Group is that a new, converged (OneDrive + OneDrive for Business) app is under development for iOS, so changes to the current app are no longer possible. It is not yet clear whether this converged app will include a fix for this particular issue, but it will certainly be taken into consideration. At this point, however, there are no further actions we can pursue over the support channels.
Please let me know if you have any further questions regarding this issue, or if we may proceed with archiving the request.
Thank you and wish you a nice weekend!”



I announced Microsoft about this issue on 8th of August 2014. Microsoft released a new version of OneDrive for Business (1.2.4) on 27th of October 2014.
The 1.2.4 version is announced as:
“What’s New in Version 1.2.4
Updated sign-in process to fix a few authentication issues.
Existing users may need to sign into the app once after installing this update.”
The authentication issues fixed by 1.2.4 are not fixing the issue described by me in this article.
On 5th of December I am informed by the Microsoft Support there will be no official fix for the “authentication issues caused by space characters part of the user name”.  Huge disappointment!



Update 4 (March 20, 2015): OneDrive for Business App is now replaced by OneDrive App. The new OneDrive App is not targeting the on-premises setups. At least now things are more clear!










Straight to the subject. You are not able to connect using OneDrive for Business 1.2.2 (iOS) to your SharePoint 2013 OneDrive personal site if your user name has space characters in it.
“Oops! … I did it again” (I am not a Britney Spears fan, but Microsoft is since is not the first time when their products are failing to work when your user name account contains space charters).



From the very beginning – I am using SharePoint 2013 (15.0.4617.1000 June 2014 CU) and my setup corresponds with the OneDrive for Business App requirements.



Let’s reproduce the software bug
As I mentioned, the user account has a space character in the user name (sAMAccountName).

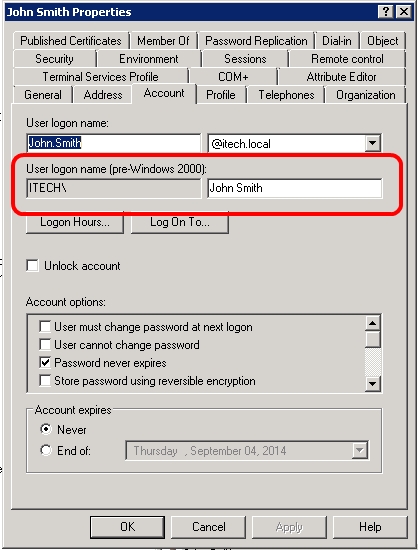

The user logon name has a space character in it.

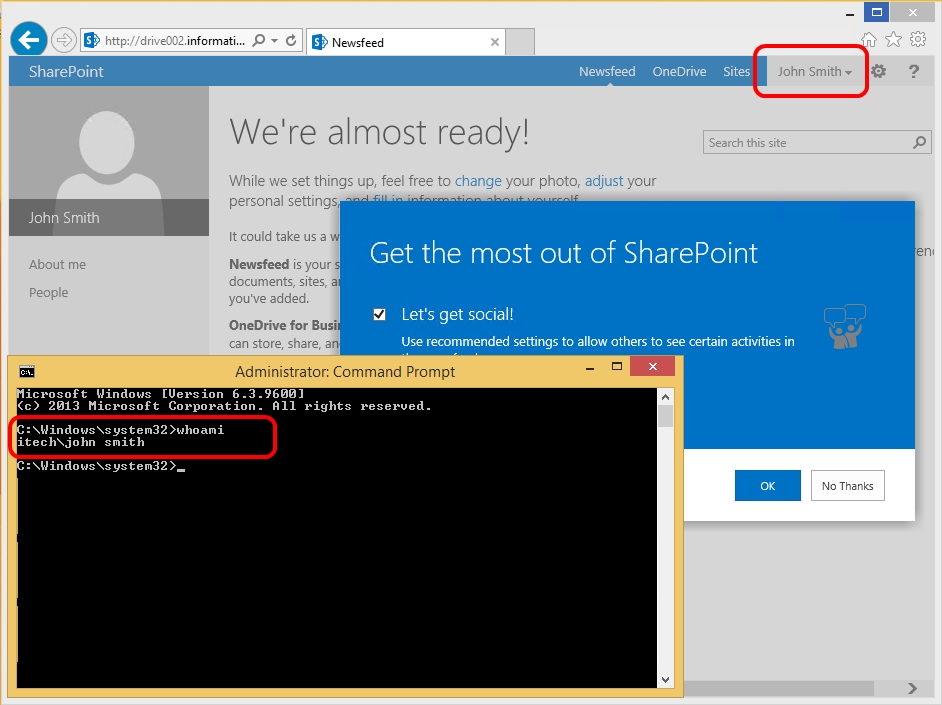

With this account (ITECH\John Smith) I am connecting to SharePoint 2013 and trigger the OneDrive personal site creation.
The URL of the OneDrive personal site is composed based on your user name. If your user name has space characters in it, then the URL will also have them (note the %20 in the URL). http://drive002.informationtechnology.ro/personal/itech_john%20smith/_layouts/15/start.aspx

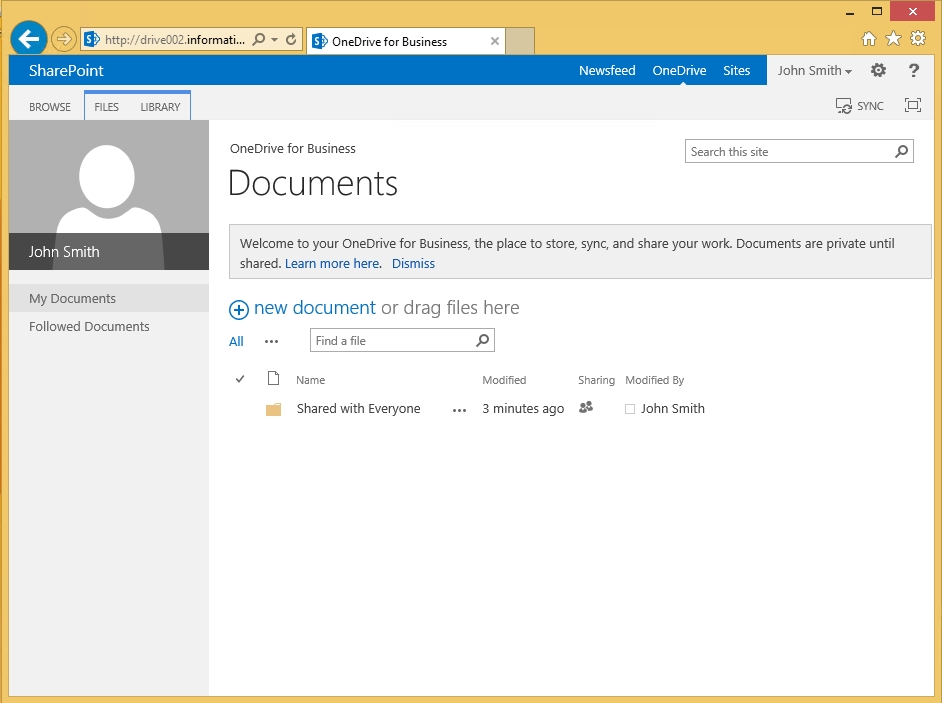

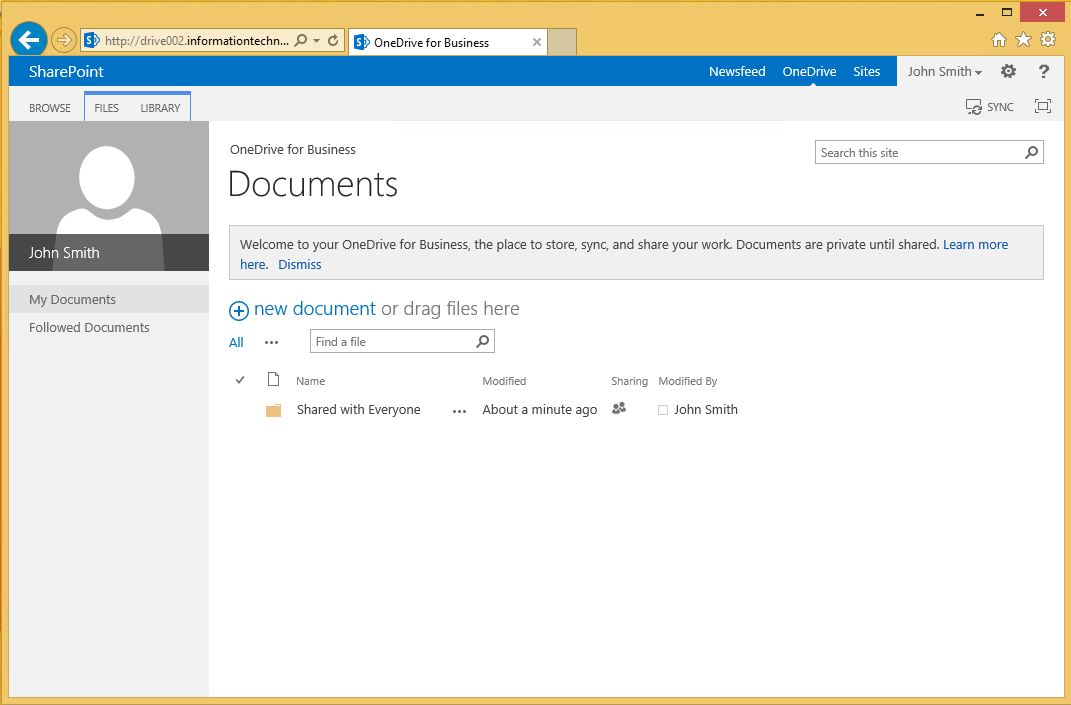

Trigger the OneDrive personal site creation. The personal site (OneDrive).



The personal site is created. Now let’s move to the iOS device.

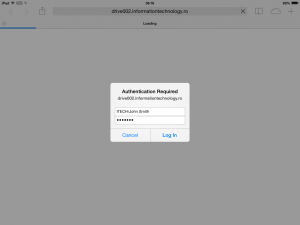

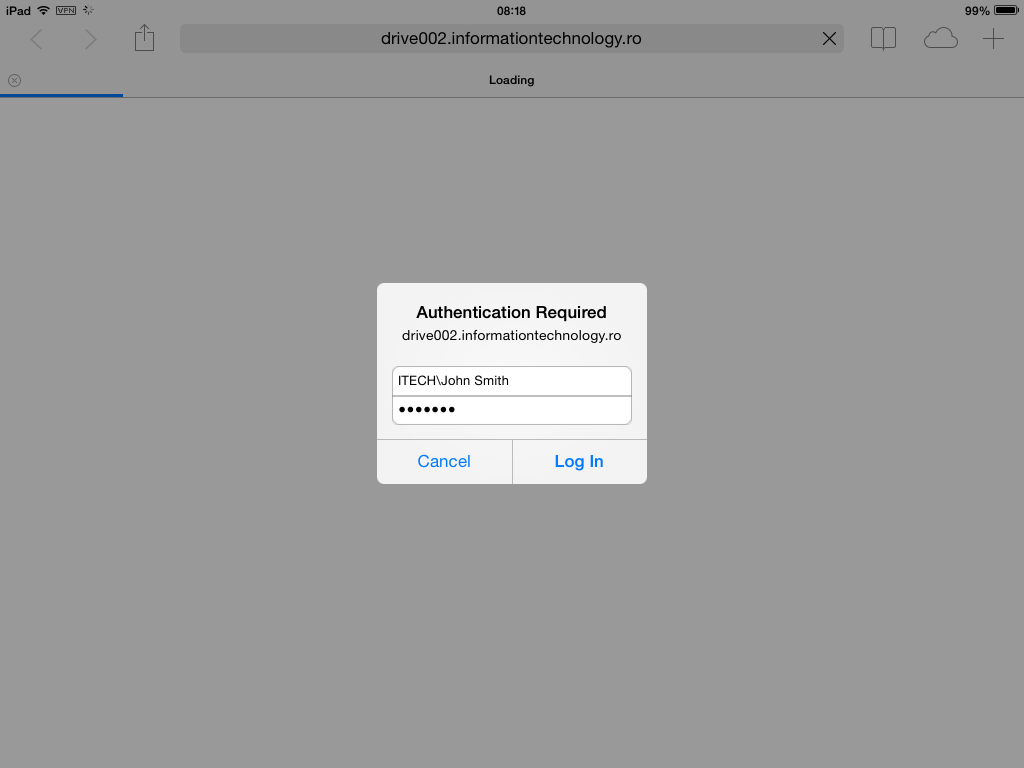

First, using Safari I am connecting to the OneDrive personal site and test the device connectivity with the SharePoint 2013 farm.
Test the iOS device connectivity with the SharePoint 2013 farm. Test the iOS device connectivity with the SharePoint 2013 farm.



The device is able to communicate with the personal OneDrive site. Now let’s configure OneDrive for Business 1.2.2 (iOS).
User name: ITECH\John Smith
SharePoint Server URL: http://drive002.informationtechnology.ro/
(this is my WebApplication FQDN where I host the personal sites)

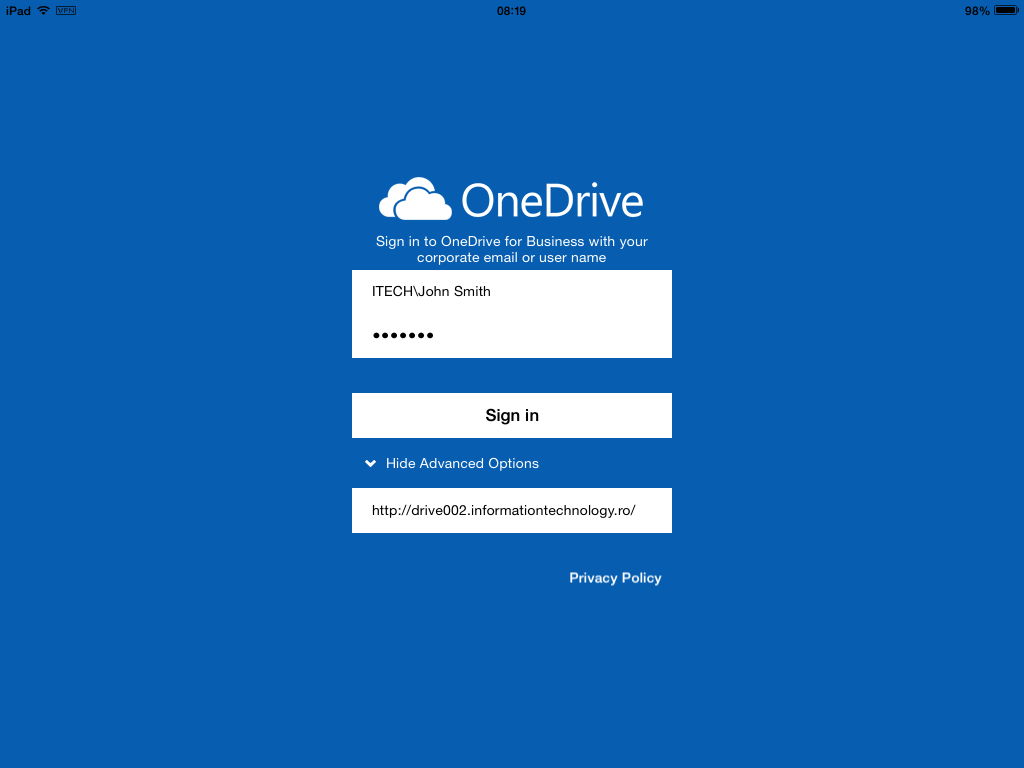

Configure OneDrive for Business 1.2.2 (iOS) using an account that has space characters in the logon name.

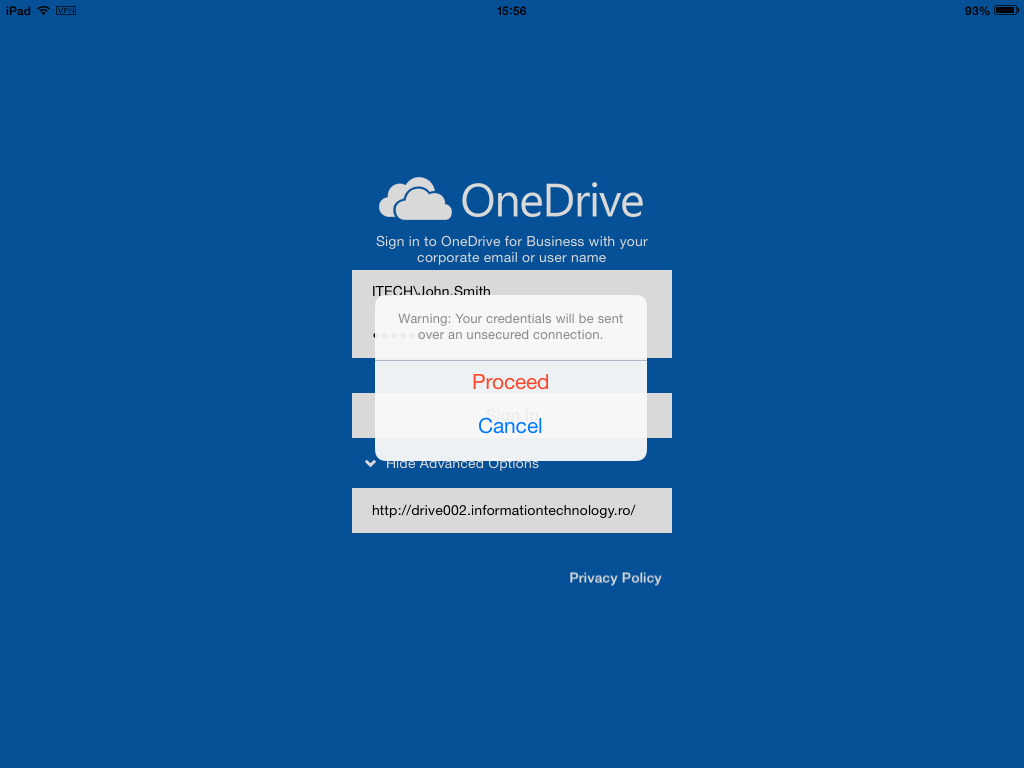

When I tap the Sign In button I am informed I’m not using a SSL connection. In this case (testing/troubleshooting) this warning message can be ignored.
Configure OneDrive for Business 1.2.2 (iOS) - warning message because we are not using HTTPS.



I tap the Proceed button and I get some Signing In progress wheel and after that … nothing – same login screen. Tapping again Sign In will not help.
Configure OneDrive for Business 1.2.2 (iOS) using an account that has space characters in the logon name. Configure OneDrive for Business 1.2.2 (iOS) using an account that has space characters in the logon name - authentication loop.

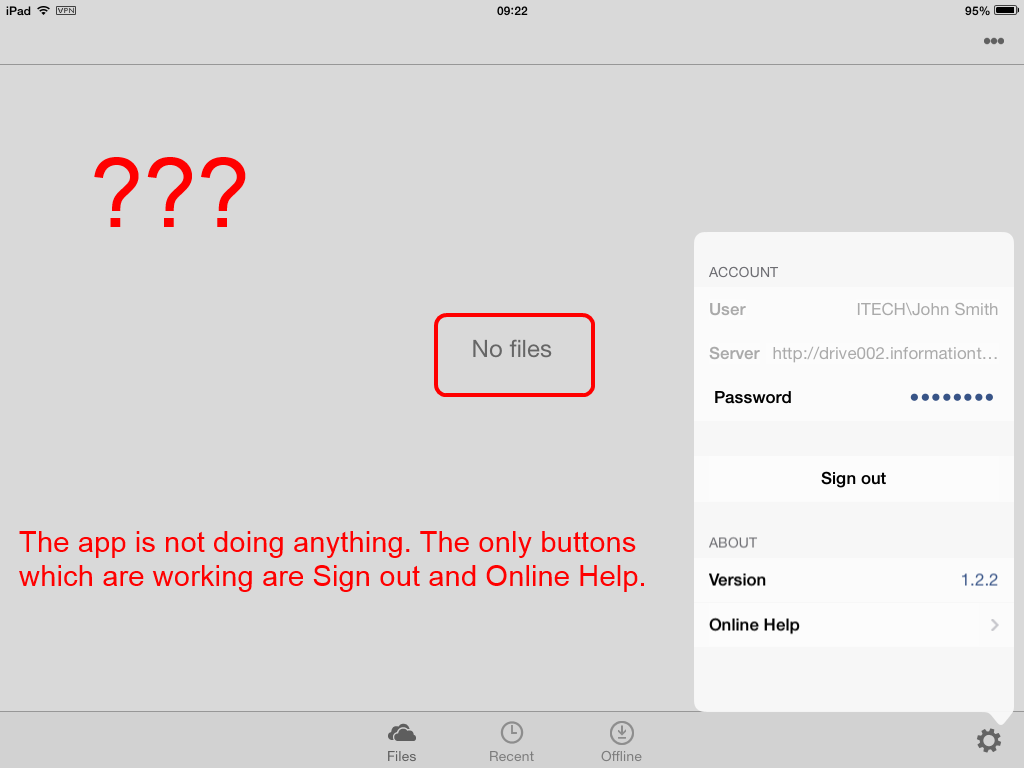

🙂 if I quit the OneDrive app and open it again, the app is showing like it’s configured, but in fact is not connecting, or doing anything.
Configure OneDrive for Business 1.2.2 (iOS) - the app looks like is configured, but it doesn't work.



Let’s see whats going on the network when I tap Sign In.

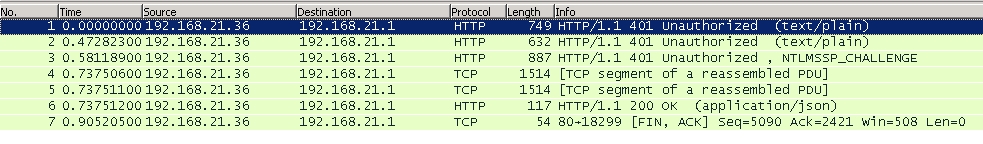

Capture with what OneDrive for Business 1.2.2 (iOS) sent through the network.
Click to see the HTTP requests performed by the App.





Now let’s prove is working for the user accounts that doesn’t have space characters (sAMAccountName)
Let’s do a cleanup of the existing John Smith personal site, user profile and update the AD from ITECH\John Smith to ITECH\John.Smith.

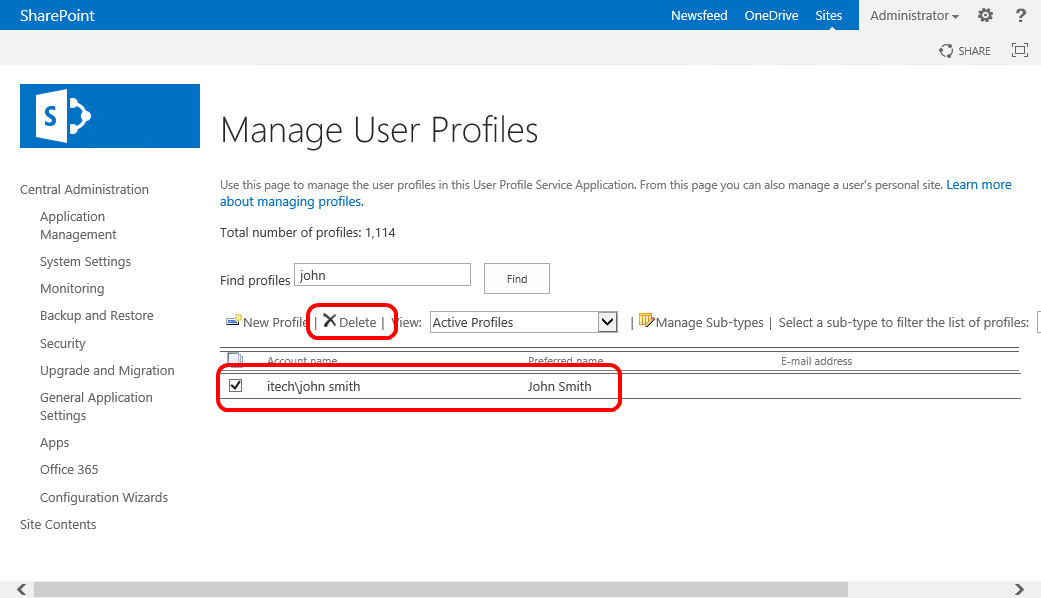

Delete the user profile from SharePoint.
Delete the existing user profile.

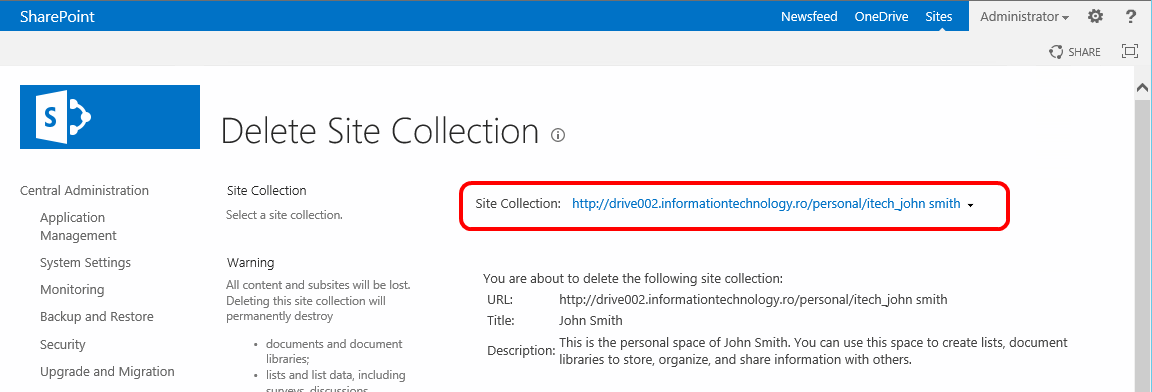

Delete the personal site collection.
Delete the personal site.



Update the AD account.

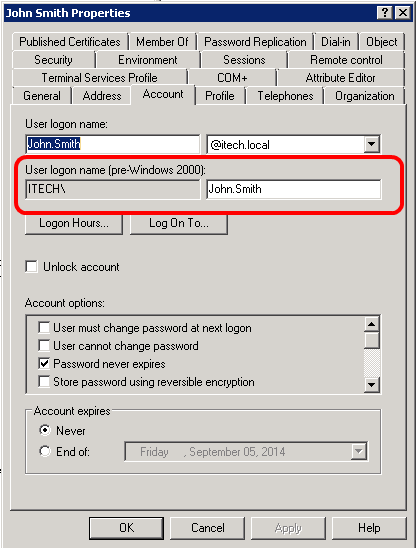

Update the user account - no space characters in the logon name.

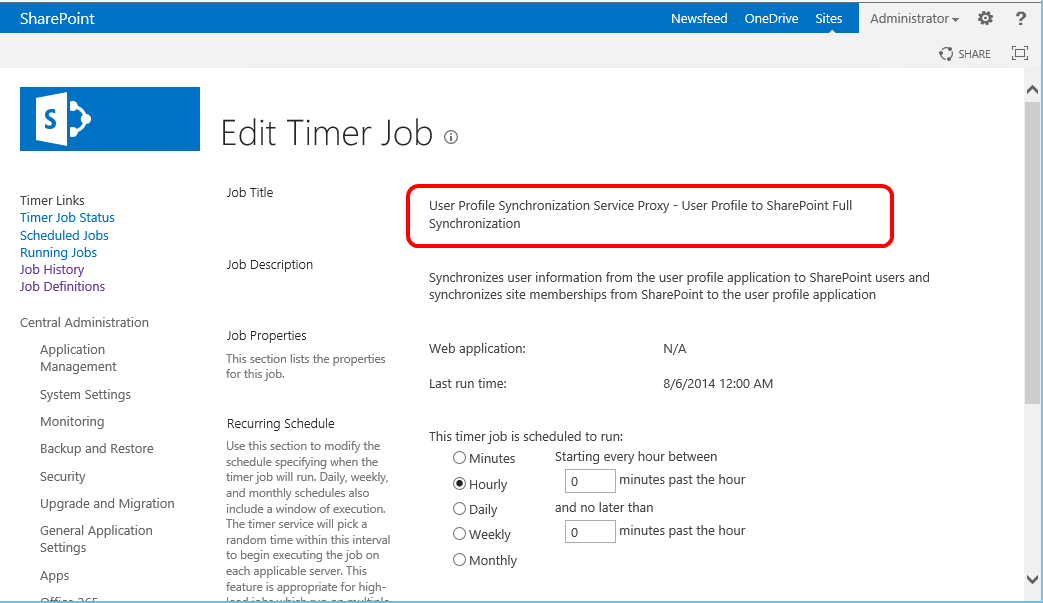

Run the User Profile Synchronization Service Proxy – User Profile to SharePoint Full Synchronization SharePoint timer job.
Run the User Profile Synchronization Service Proxy – User Profile to SharePoint Full Synchronization SharePoint timer job.



OK, now we are ready for a clean “start” with ITECH\John.Smith.

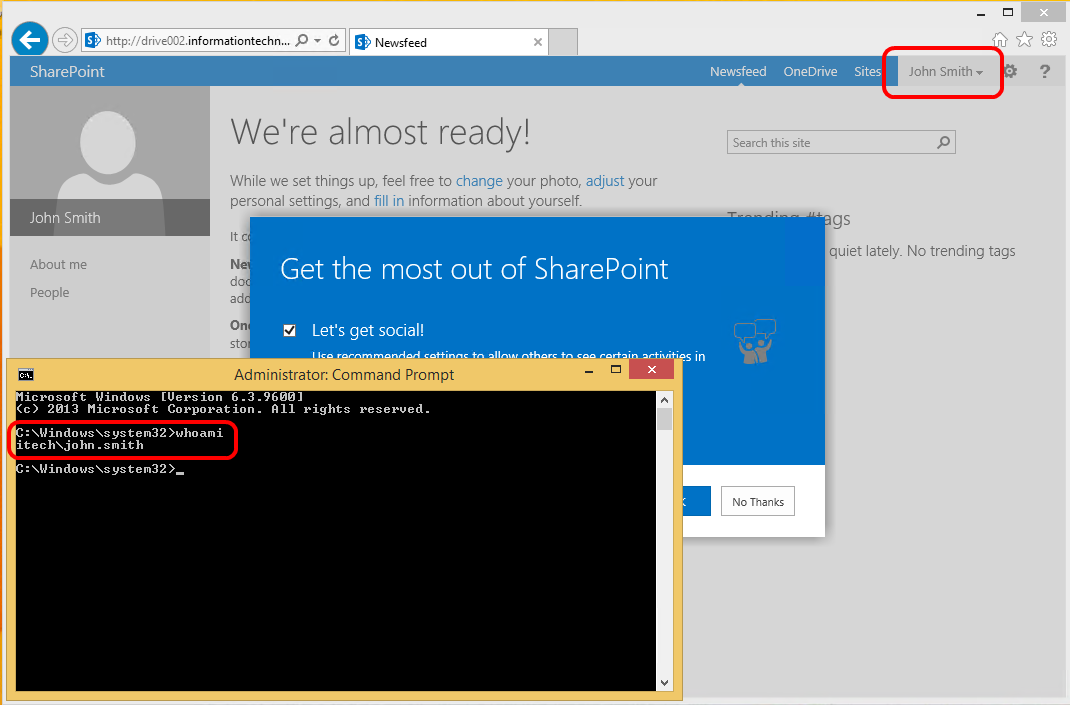

Again, with ITECH\John.Smith I am connecting to SharePoint 2013 and trigger the OneDrive personal site creation.
This time the URL of the OneDrive personal site will not contain anymore %20 because the user name doesn’t have any space characters in it. http://drive002.informationtechnology.ro/personal/itech_john_smith/_layouts/15/start.aspxTrigger the OneDrive personal site creation. The personal site (OneDrive).



The personal site is created. Now let’s move again to the iOS device.

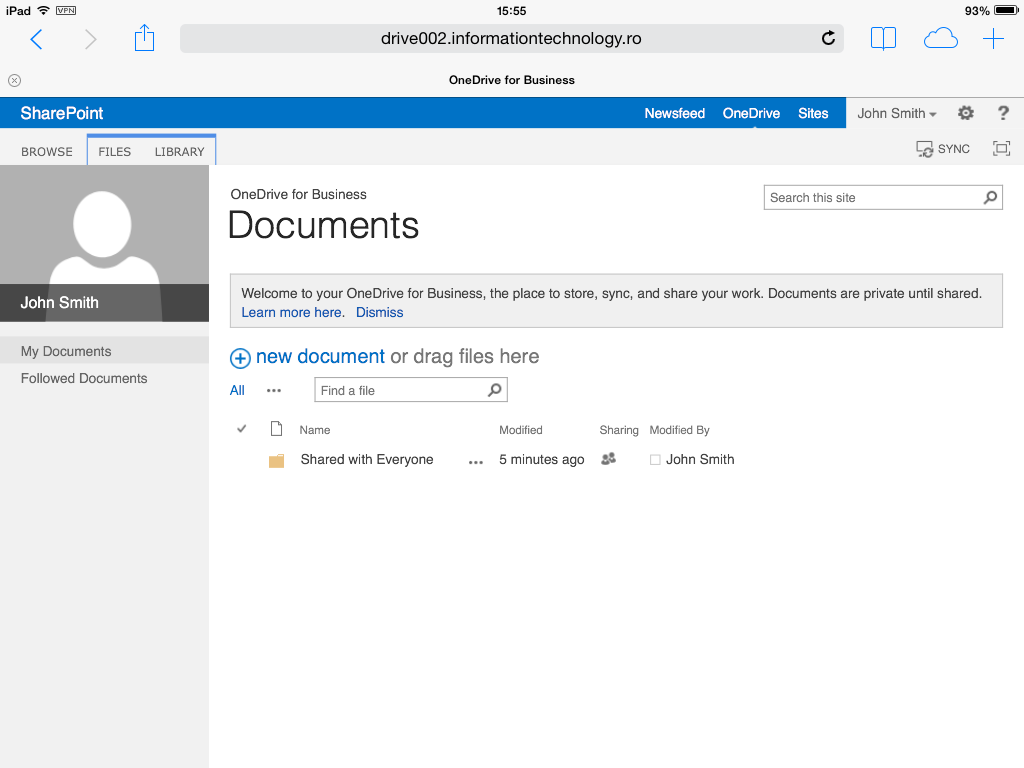

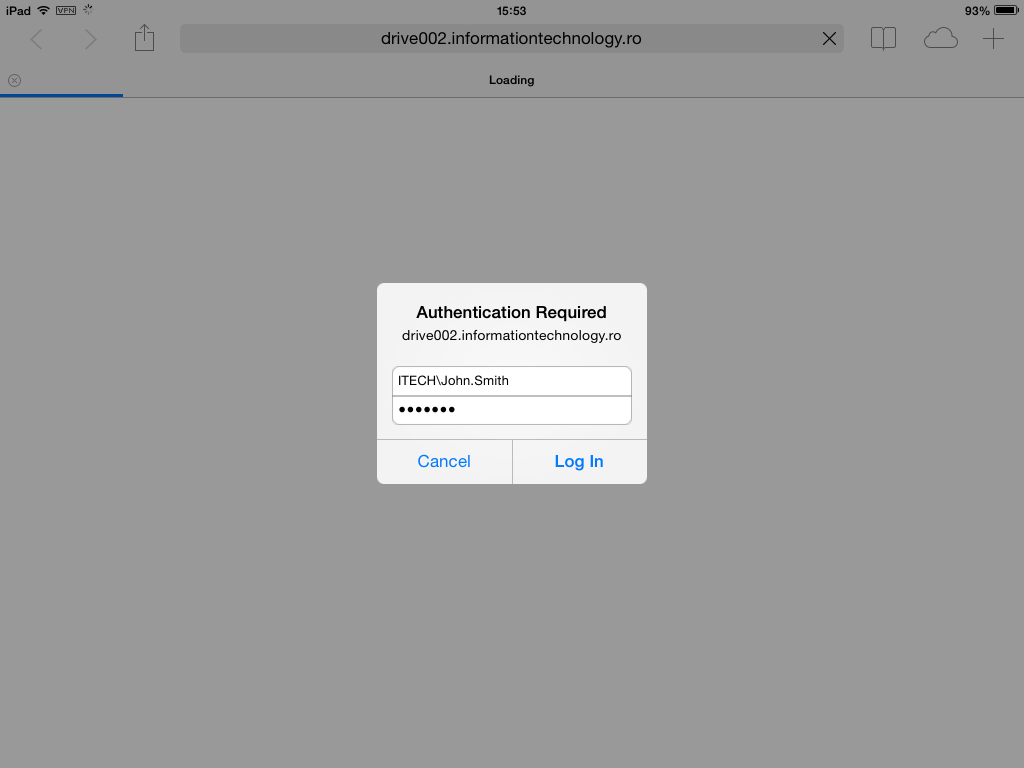

Using Safari I am connecting to the OneDrive personal site and test the device connectivity with the SharePoint 2013 farm.
Test the iOS device connectivity with the SharePoint 2013 farm. Test the iOS device connectivity with the SharePoint 2013 farm.



The device is able to communicate with the personal OneDrive site. Now let’s configure OneDrive for Business 1.2.2 (iOS).
User name: ITECH\John.Smith
SharePoint Server URL: http://drive002.informationtechnology.ro/
Configure OneDrive for Business 1.2.2 (iOS). Configure OneDrive for Business 1.2.2 (iOS).



Configure OneDrive for Business 1.2.2 (iOS). Configure OneDrive for Business 1.2.2 (iOS).



Configure OneDrive for Business 1.2.2 (iOS).

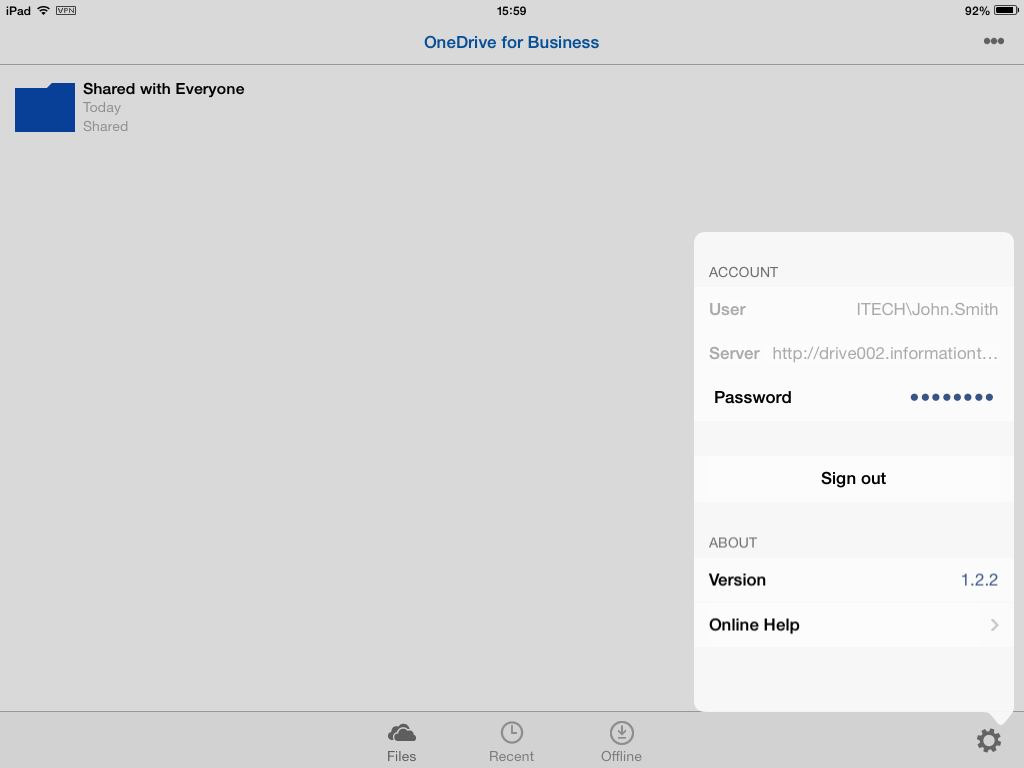

OneDrive for Business 1.2.2 (iOS) is now configured.
OneDrive for Business 1.2.2 (iOS) is now configured.

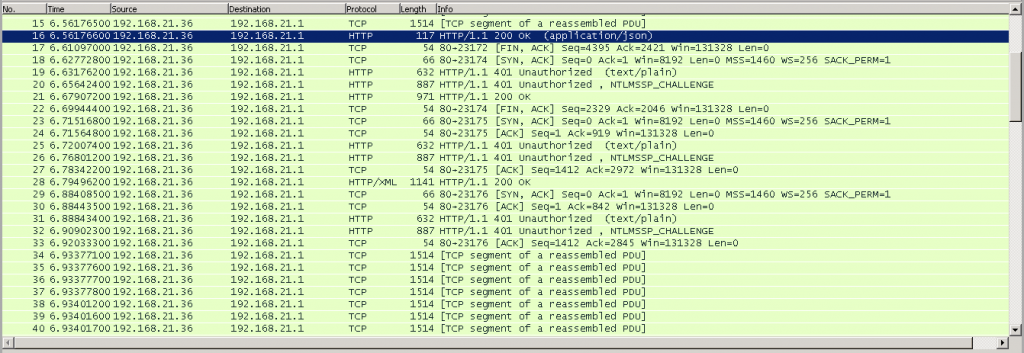

If I look into the network traffic generated when I taped Sign In, I see many more HTTP requests.
I see many more HTTP requests compared with the previous capture - sign the OneDrive for Business 1.2.2 (iOS) is actually working.
